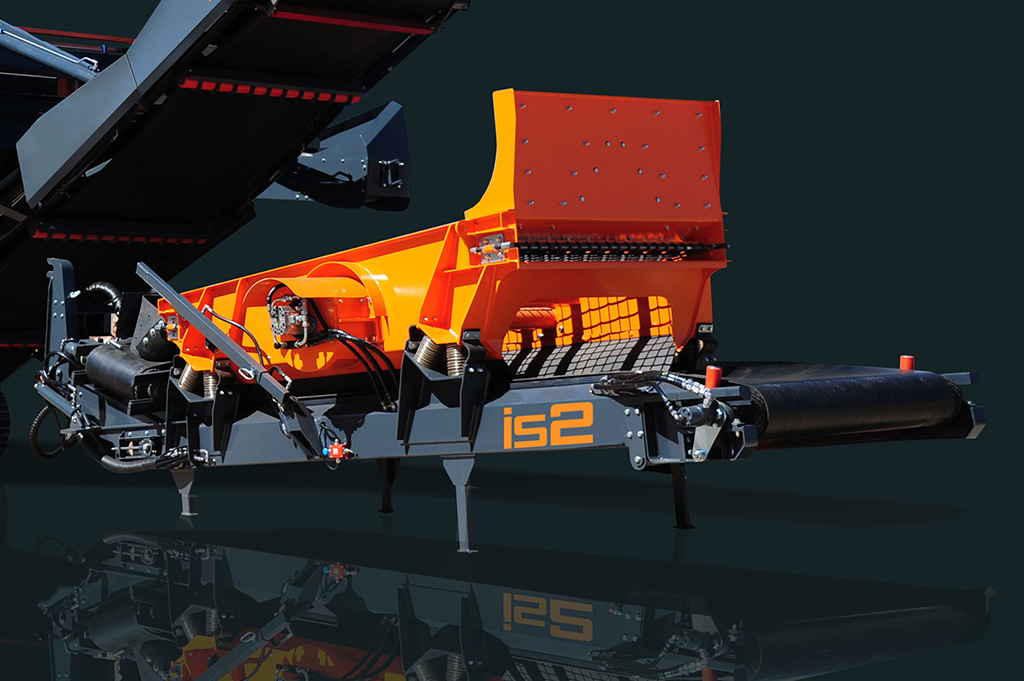

innoscreen is2

The screening plant is suitable for all innocrush crusher models and is used to produce material with a fixed size. With the infinitely variable speed setting of the sieve box, a quick reaction to changed materials and their properties is guaranteed.

  • Throughput: 420 tph
  • Dimensions: 5 x 2,5 x 3,2 m
  • Weight: 2,6 t


Innoscreen is2 – no additional screening machine necessary

  • direct drive of crusher without additional power unit
  • supplies exact predefined grain
  • oversized grain back into circulation
  • available with slewable return conveyor






The screen box is characterized by the following properties:

  • - Extra large screening area
  • - 2 identical screen surfaces, selectable mesh size
  • - Large discharge height and great ground clearance
  • - Quick and easy pick-up on the crusher
  • - Drive via the hydraulic system of the crusher
  • - Simple screen surface cleaning without lowering the screen box
  • - Belt head of the main discharge belt can be folded hydraulically
  • - Continuous speed adjustment cross belt
